Ash Feed Valves

Overview

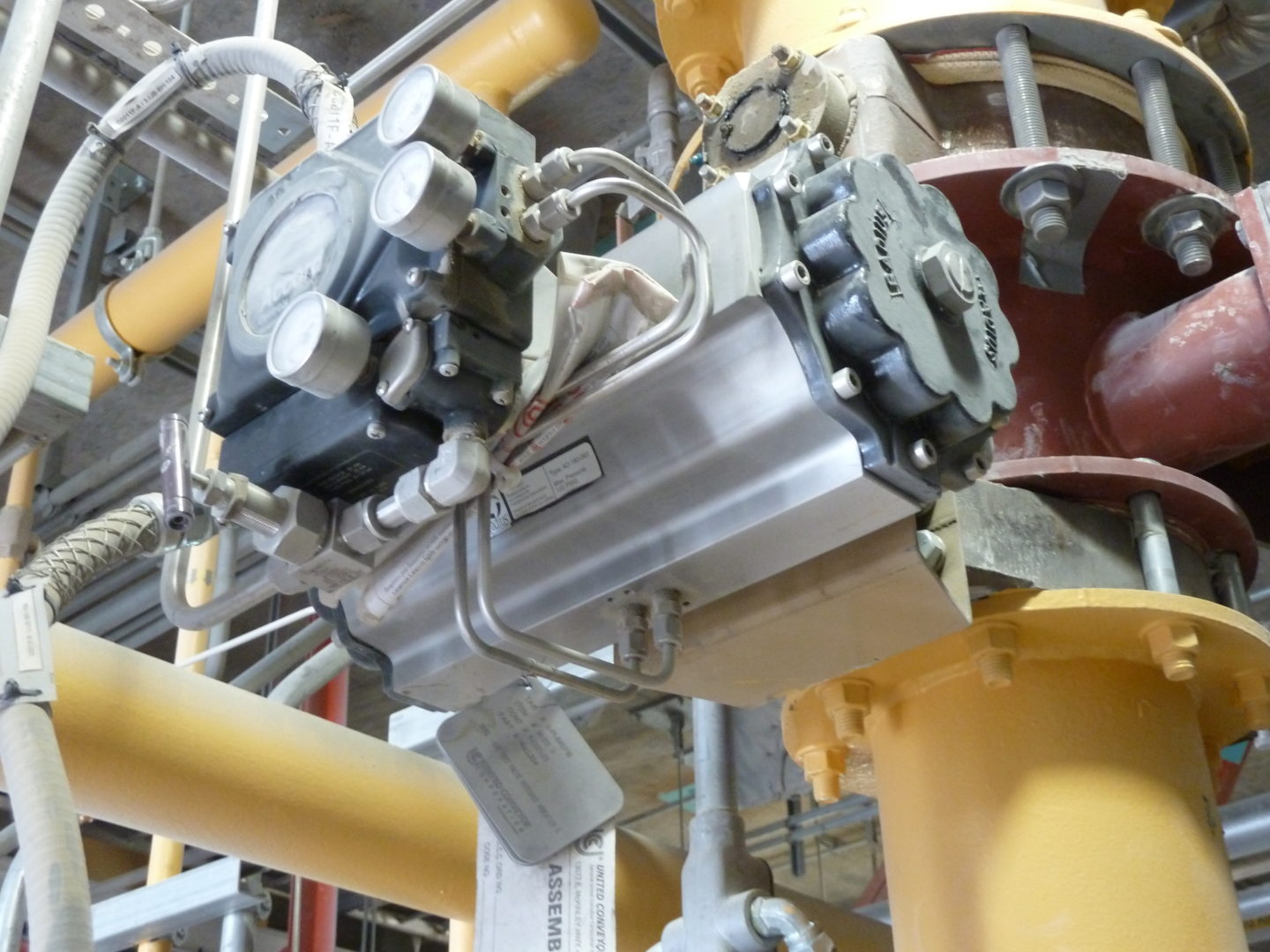

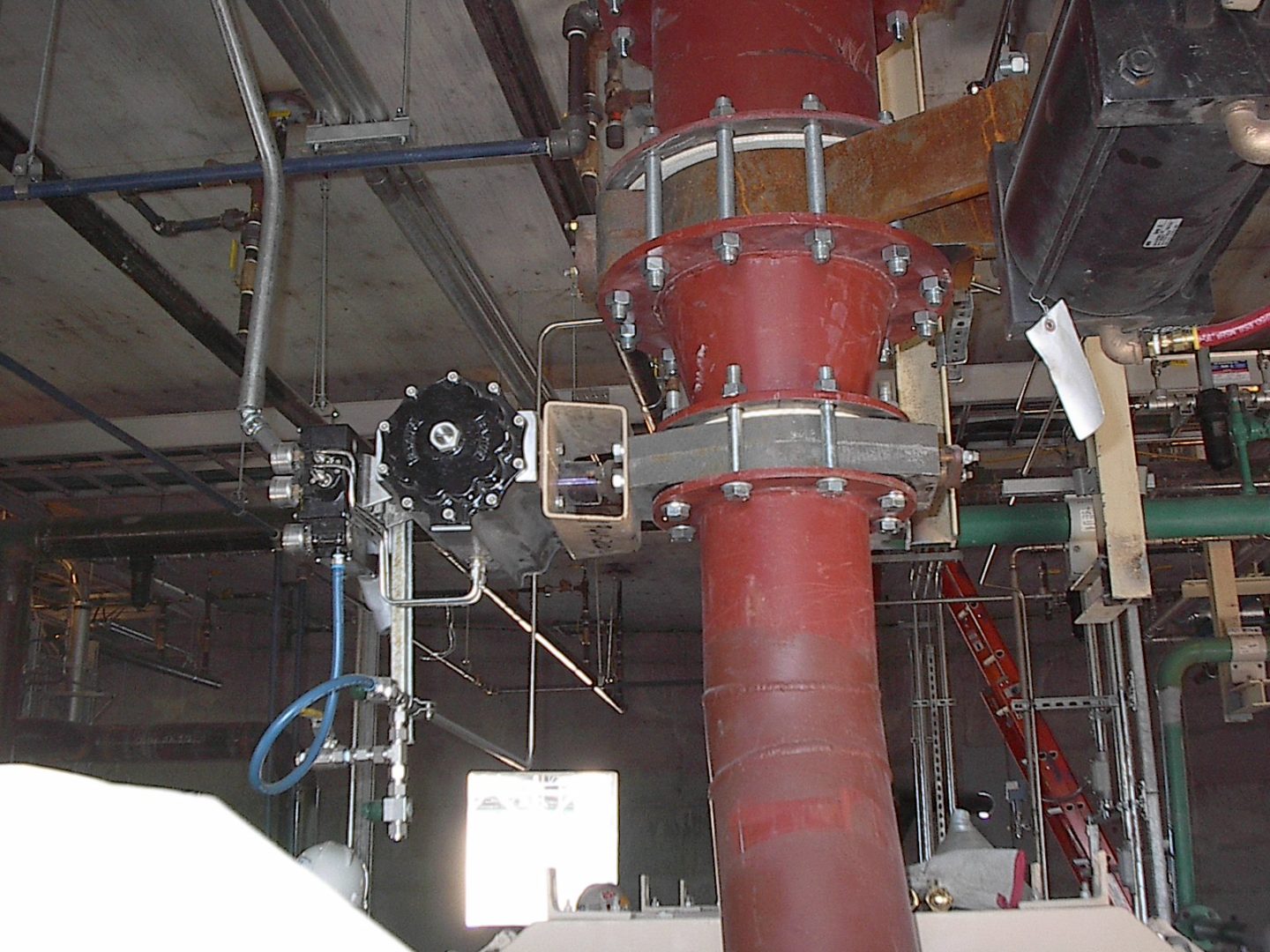

UCC’s ash feed valves are designed to provide shut-off and flow control of ash, both fine and coarse particle size, from a storage silo into a mixer/unloader or dry unloading spout. UCC ash handling valves are rugged, well-constructed, clean operating and easy to maintain. The metal disc is wear resistant and can rotate a full 180° to prevent material from hanging up the valve. The rack and pinion actuator is equipped with a positioner with 4-20 mA or 3-15 PSI input signals and limit switches to provide easy integration into existing control systems. UCC’s ash feed valves are shipped pre-piped and fully assembled which reduces field assembly and installation costs.

Features & Benefits

  • Cast Gray Iron Body – Rugged and high strength design
  • Induction hardened cast iron disc – Improved wear resistance and extended service life
  • Valve shaft and coupling – Robust and trouble free operation over shear/connecting pin design
  • TFE impregnated yarn packing design – Reduces friction forces on shaft; provides a pressure tight seal and easy operation
  • Valves are shipped pre-piped and fully assembled – Reduced installation costs

General Information:

  • Line Size: 6″ and 8″
  • Maximum Temperature: up to 550 °F
  • Flange Connections:ANSI B16.5, Class 150, Wafer Style

Material of Construction:

  • Body: Cast Gray Iron
  • Disc: Induction Hardened Gray Cast Iron
  • Shaft: Carbon Steel
  • Packing Follower: Cast Gray Iron
  • Bearing: Cast Bronze
  • Packing: TFE Impregnated Yarn
  • Coupler :17 – 4PH Stainless Steel
  • Actuator Bracket: Fabricated Carbon Steel
