Connections

UCC connections are used to mechanically fasten all pipe, fittings, and valves in UCC conveying systems, and are designed to perfectly mate with UCC gaskets. All connections come individually kitted for quick and easy installation.

Connections United Conveyor

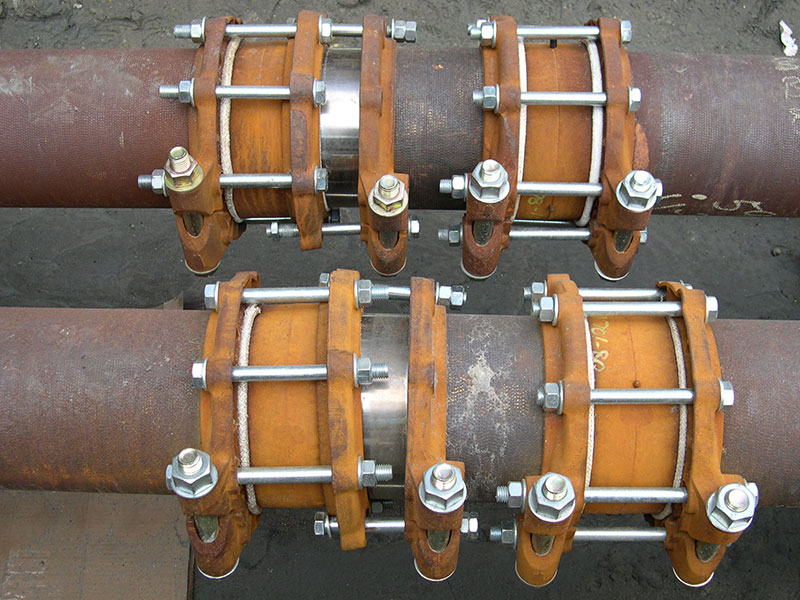

NUVALOYâ„¢ Connections

NUVALOYâ„¢ Pipe Connections feature locking or non-locking flange clamps that fit over the end of the plain end pipe. The locking type clamp is held securely to the Nuvaloy pipe with a locking cross bolt. Wedge-shaped gaskets are used to seal the connection and are available for both low and high-temperature applications.

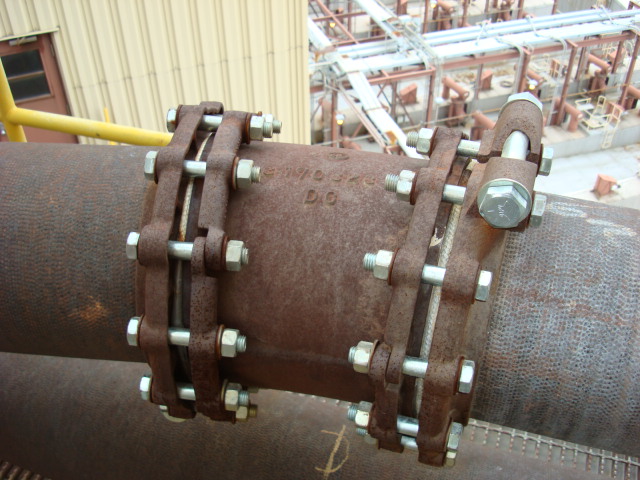

DURITE Connection

DURITE® Connections

DURITE® Connections use a 2- or 3-piece split flange clamp depending on pipe size to secure the bevel ends of DURITE pipe and fittings. A steel reinforced silicone ring gasket provides optimal sealing against the cast iron flanges.

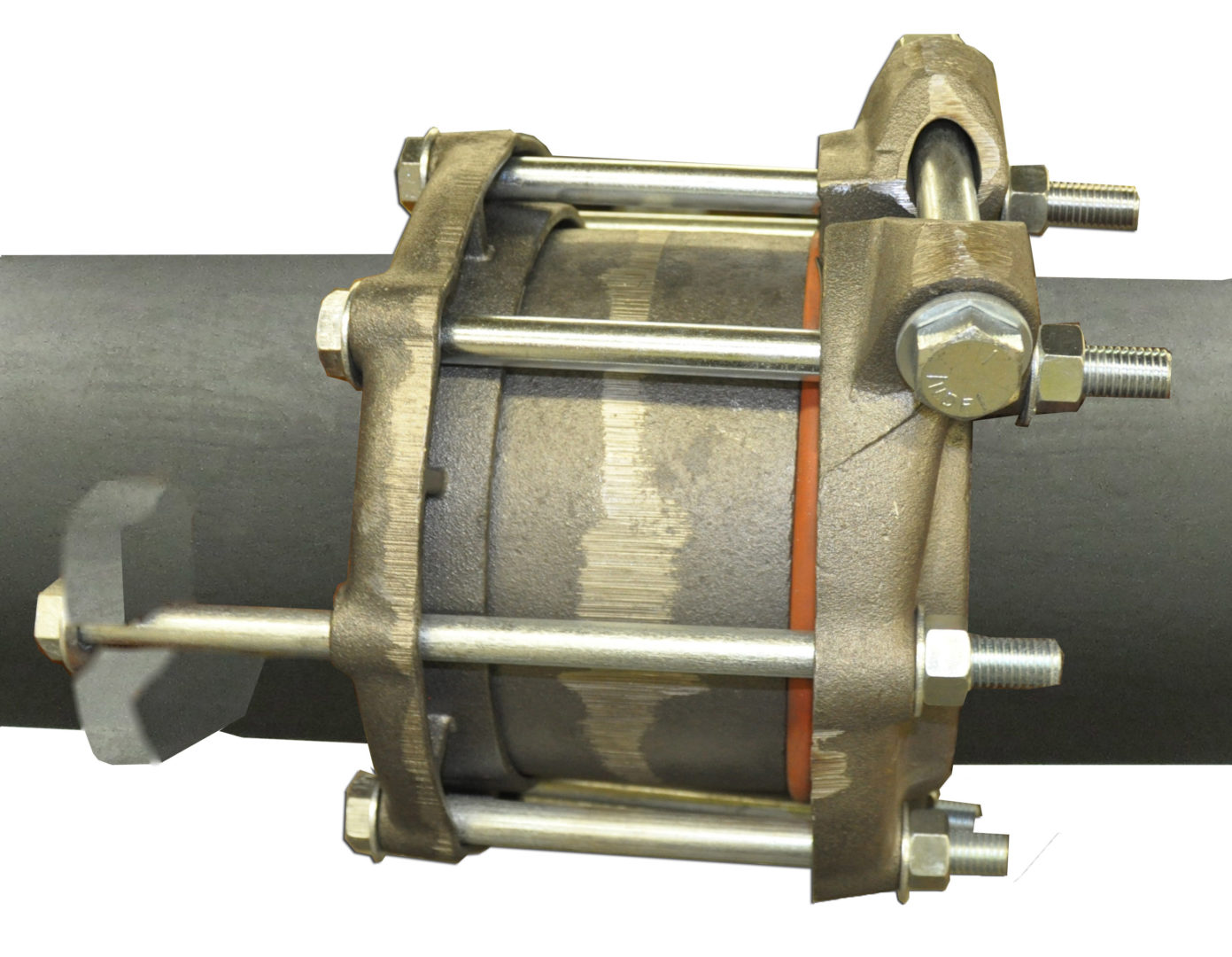

SPARTAN Connection

SPARTANâ„¢ Connections

SPARTANâ„¢ Connections utilize the integrated lug found on each SPARTAN fitting and a locking flange clamp to ensure a secure connection. This unique clamp and lug configuration eliminate the need for pipe supports around the SPARTAN fitting.

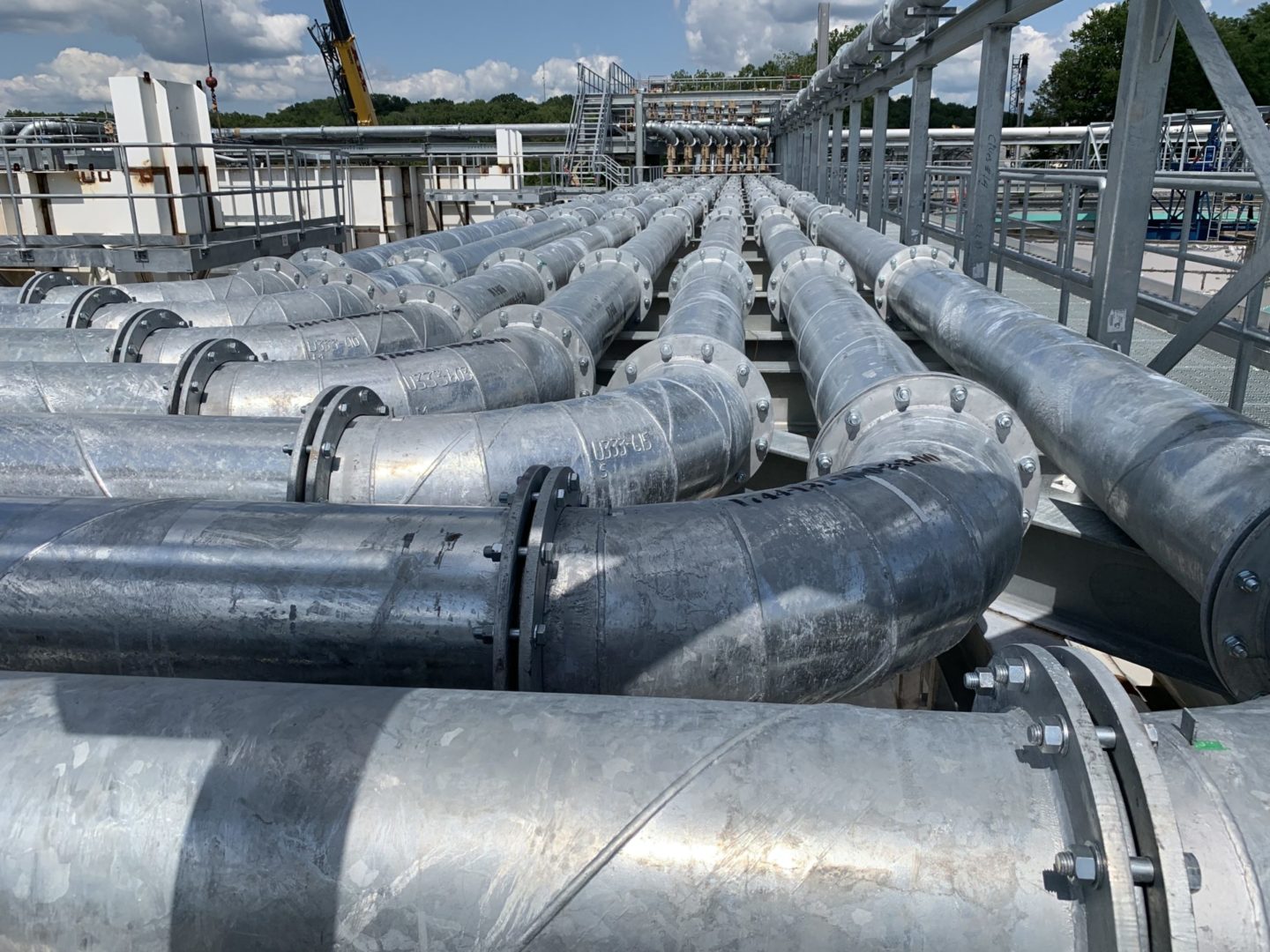

DUR-ROK

DUR-ROKâ„¢ Connections

DUR-ROKâ„¢ Connections are available to fasten both fixed and rotating flanges and uses a canvas reinforced neoprene gasket specifically designed to seal against basalt lined pipe.

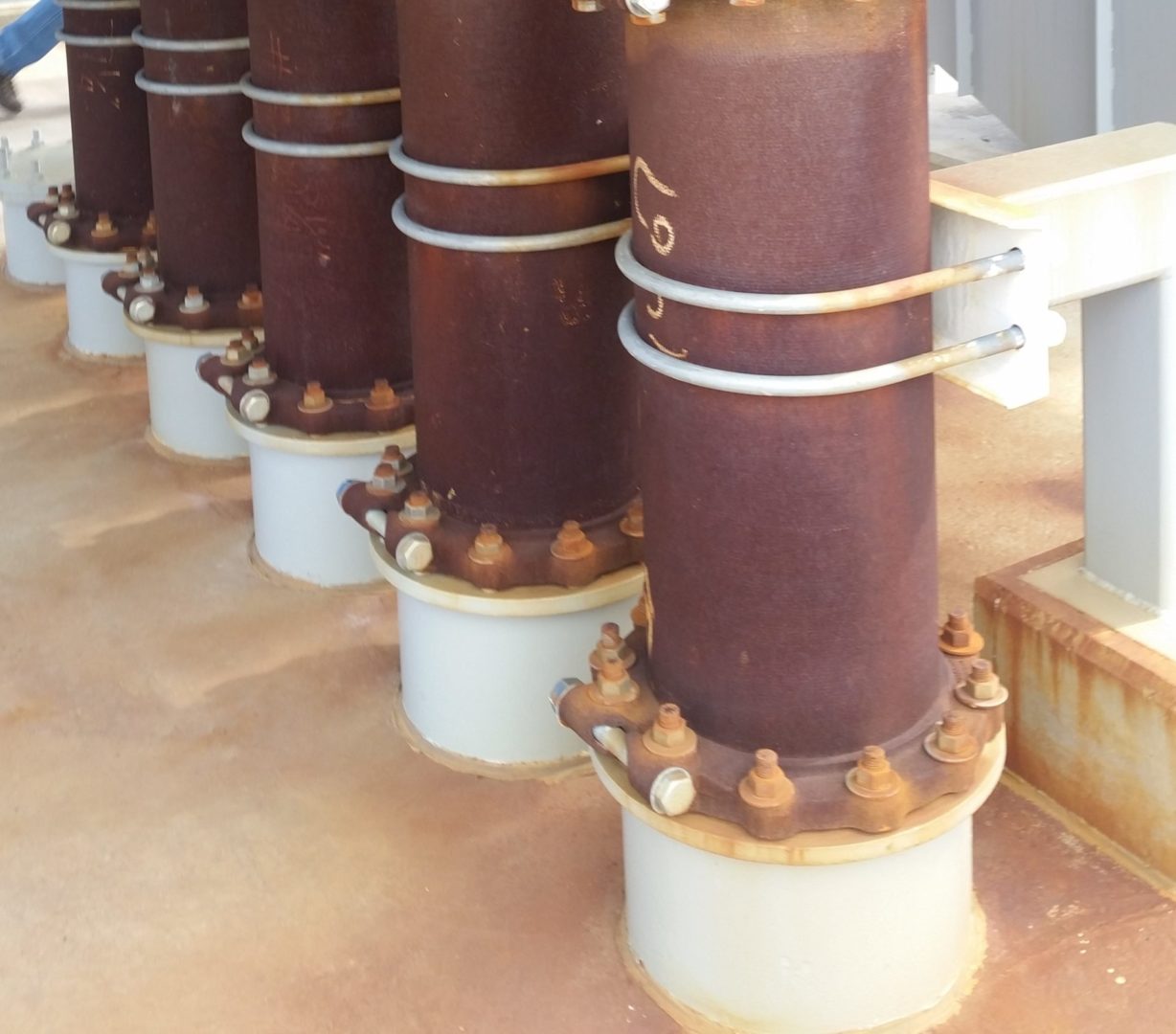

ANSI Connections

ANSI Connections

UCC has a wide variety of connection kits for connecting to standard ANSI class flanges, including connections with UCC’s NUVALOY, DURITE, SPARTAN, DURA-CORE II, and DURALOY pipe and fittings.

How can we help?

Our team of experts are happy to help answer any questions you have about UCC’s Pipe and Fittings.
