Pipe

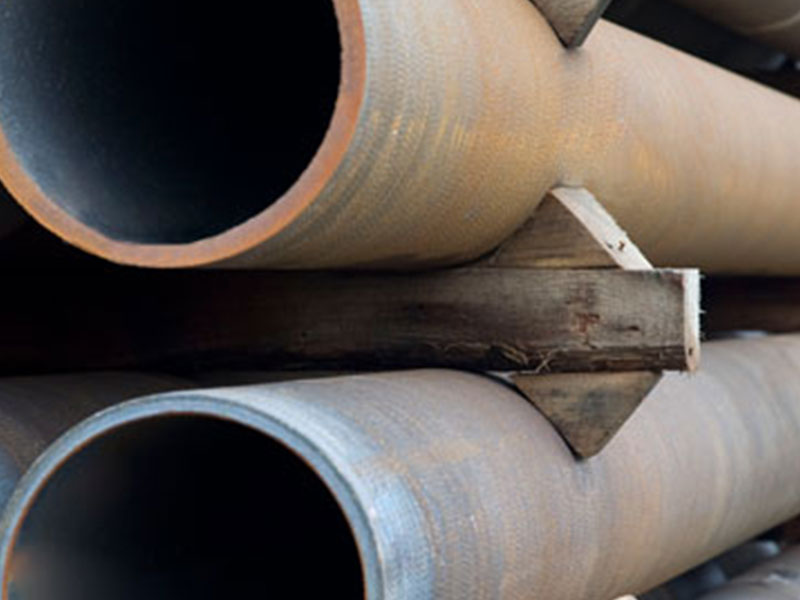

NUVALOY Pipe

NUVALOY® pipe is specifically designed for all abrasive ash handling applications. NUVALOY is available in two grades; NUVALOY is an alloyed, centrifugally cast ductile iron pipe available in NUVALOY I (285-340 BHN) or NUVALOY II (475-550 BHN).

  • Chrome-Iron alloy for improved abrasion resistance
  • NUVALOY I 285 -340 BHN standard for most applications
  • NUVALOY II 475-550 BHN for enhanced wear life
  • Plain End Pipe for easy installation
  • Centrifugally cast for uniform wall thickness and mass density
  • Pipe range from 4″ to 14″ ID
  • Abrasion resistant for a variety of ash handling applications
  • Customer has the ability to order standard or custom lengths

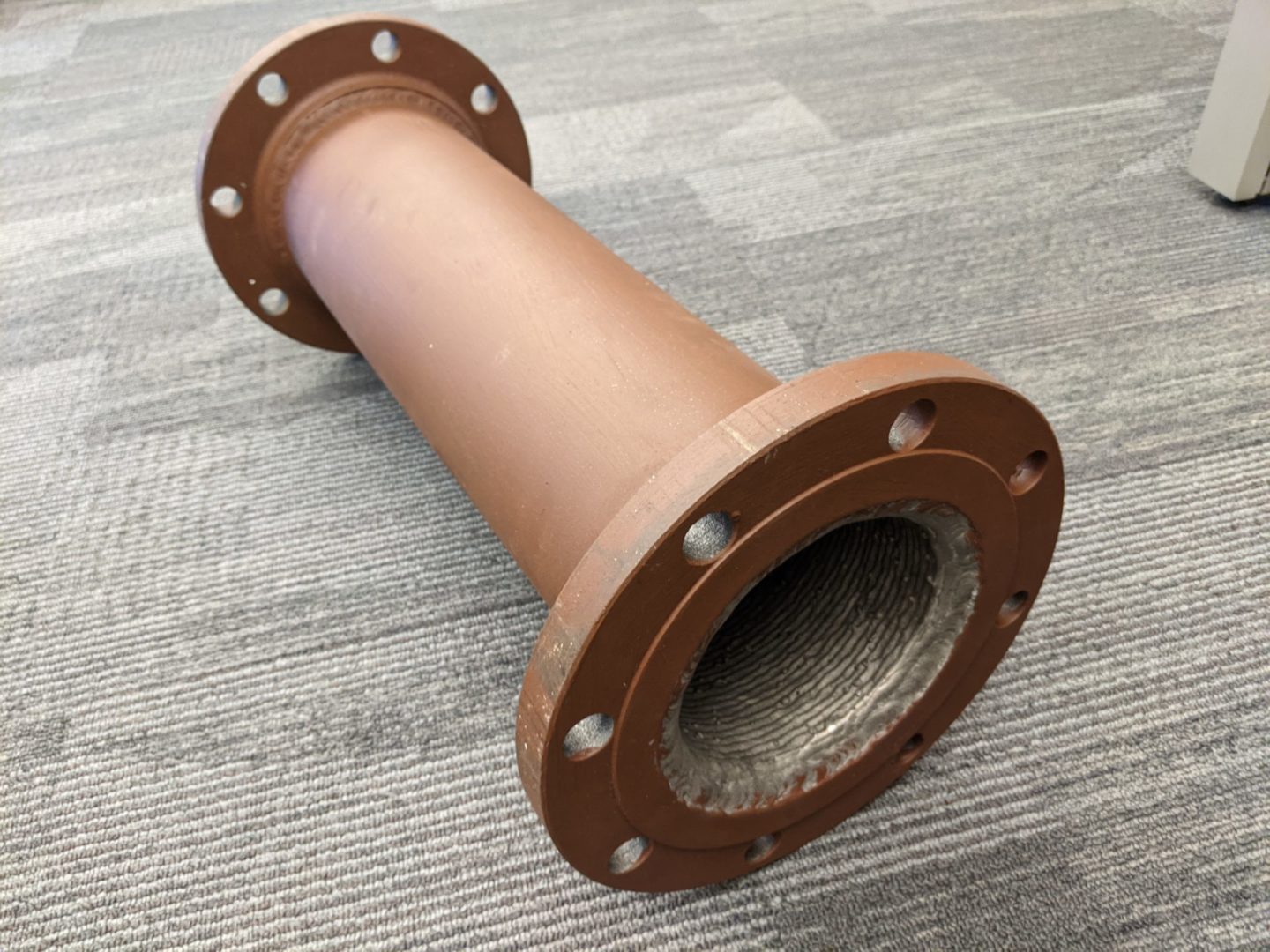

DURITE

DURITE® is an abrasion resistant, low chromium cast iron (modified ASTM A532) with a nominal hardness of 400 BHN. DURITE fittings are the primary option used in all pneumatic and hydraulic systems conveying abrasive materials. DURITE pipe spools are used in straight piping routes for high wear locations.

  • Abrasion resistant for a variety of ash handling applications
  • DURITE C – 400 BHN standard in most applications
  • DURITE H – 600 BHN option in highly abrasive applications
  • Beveled End allows for positive clamping and assured connection

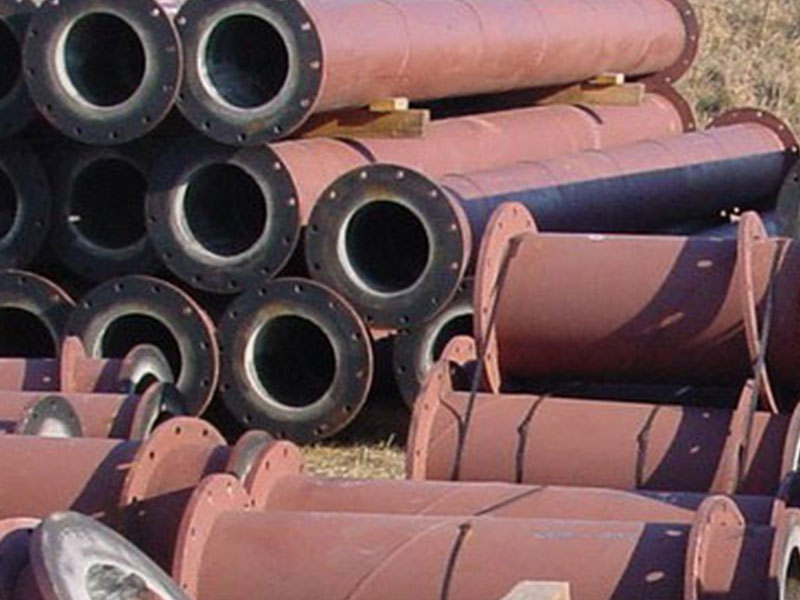

DUR-ROK Pipe

DUR-ROK® is a UCC registered trademark for basalt lined pipe, which is used in hydraulic conveying systems for transporting coarse, abrasive material such as bottom ash.

  • Abrasion resistant for a variety of ash handling applications
  • Spool pieces come with one fixed and one loose flange for flexibility in field installation
  • 150# or 300# ANSI flanges
  • Pipe and fittings range from 3″ to 14″ ID
  • Corrosion resistant
  • High operating pressure (up to 150 psi)
